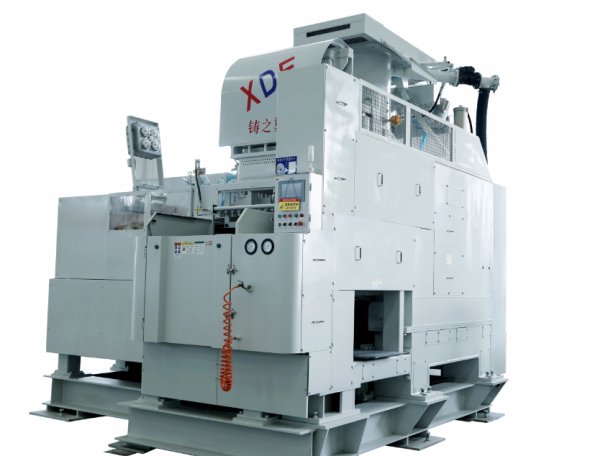

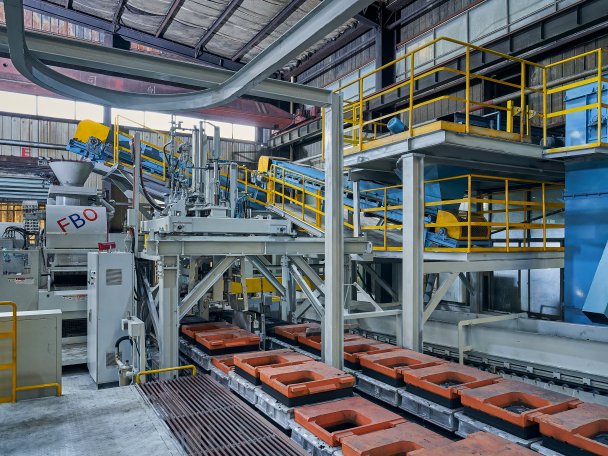

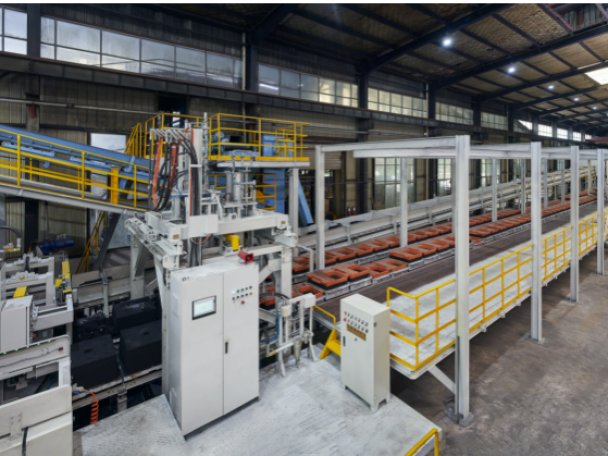

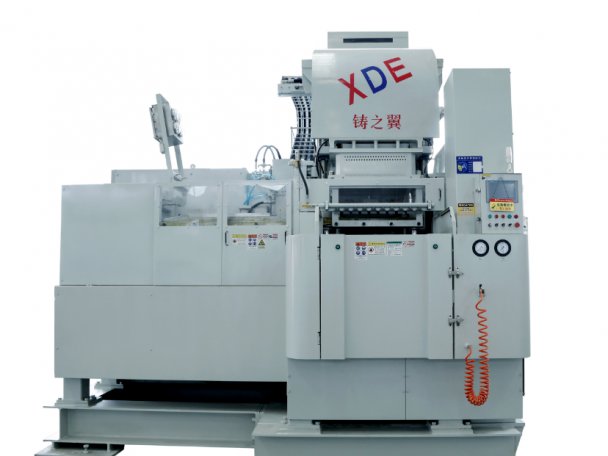

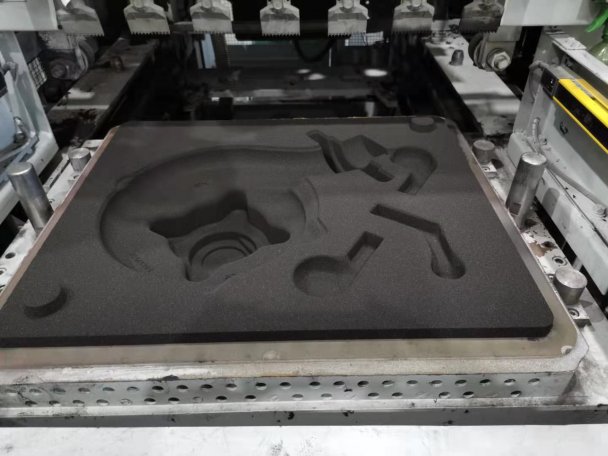

The molding machine is made in China and uses Japanese technology. The machine is equipped with the world's advanced airflow sand filling system, which feeds the casting sand into the upper and lower mold boxes, squeezes the sand mold through the hydraulic system, and forms the same casting shape as the mold box after demolding. Then, the mold moves to the secondary molding line, and the molten high-temperature ferroalloy is poured into the mold to form the casting. Next, in the automated and unmanned production process, the mold is cooled, then opened, and the finished casting is separated from the mold.
Product name | Molding plant | |
Dimensions of the casting mold | 508×610×400 508×660×400 600×700×400 (Upper flask 130-200/lower flask 130-200) | 660×711×500 (Upper flask 180-250/lower flask 180-250) |
Thickness of sand mold | Three-level switching | |
Molding method | Rotate the flask by 90 degrees | |
Air blowing + gravity backfill | ||
Top blowdown + seal | ||
Rod feeding method | Automatic lower flask roll-out for core feeding | |
Sealing drive | Hydraulic drive | |
Pressure density | 1MPa | |
Forming speed | 120 forms/hour (excluding time for feeding rods) | 90 forms/hour (excluding time for feeding rods) |
Air consumption | 1.2Nm³/mold | 2.5Nm³/mold |
Working pressure | 0.5-0.55MPa | |
Power supply specification | Supply voltage AC380V(50Hz), Control voltage AC100V(50Hz) | |
Weight of the casting mold | 117-250kg | 250-325kg |
